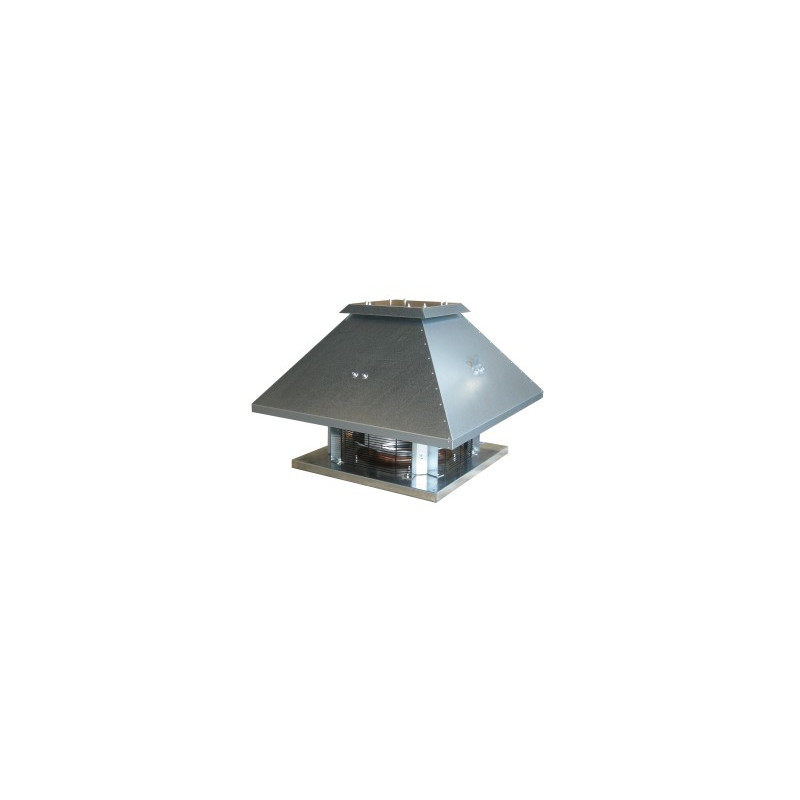

      ROOF-CM ATEX

      ROOF-CM ATEX

      CONSTRUCTION

      • High efficiency backward curved blade impeller in galvanized steel sheet. Balancing according to UNI ISO 21940-11.
      • Installation base with inlet cone in metal sheet protected against the atmospheric agents.
      • Outer protection guard in steel rod protected against the
      • atmospheric agents.
      • Motor cap in steel sheet protected against the atmospheric agents.
      • Asynchronous three-phase or mono-phase electric motor, outside the airflow, protection IP 55, insulation class F, S1 service, construction according to IEC / EEC / UNEL MEC. Explosion proof ATEX APPROVED FOR EXPLOSIVE ATMOSPHERE G or D GROUP II.
      • Arrangement 5; impeller directly flanged on motor shaft
      Write your review

      The ROOF-CM ATEX line is specifically designed for installations requiring safe and efficient air extraction in environments with a risk of explosion caused by flammable gases.
      Typical applications include battery rooms, chemical facilities, laboratories, and similar settings.
      Suitable for direct or ducted installation on rooftops.
