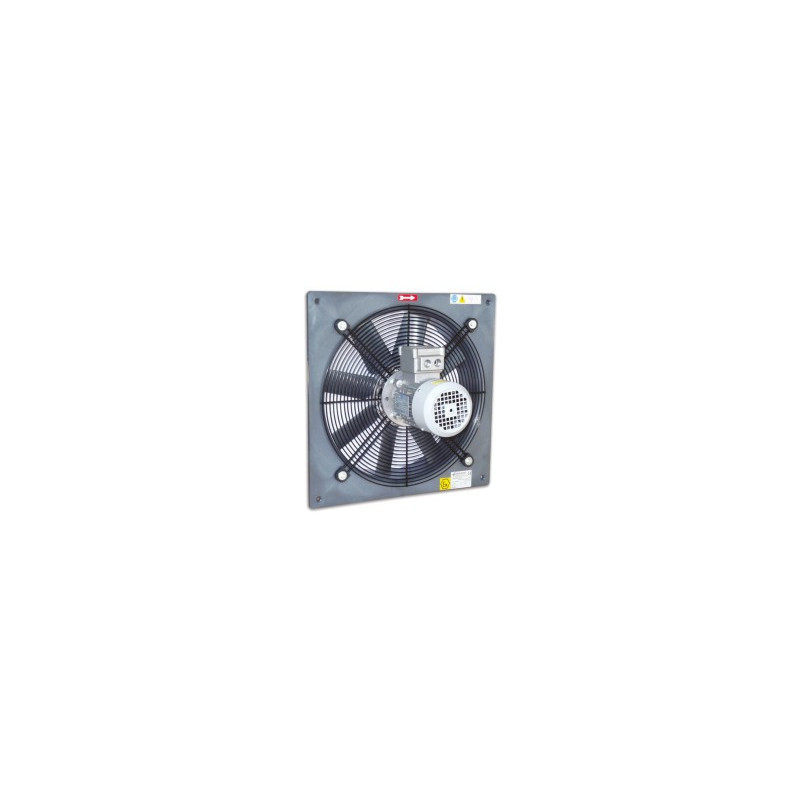

PLATE-M atex

Supporting frame in antistatic plastic material or in steel sheet with or without aluminum stripe around the impeller rotation area.
Inlet protection grid, with function of motor support, in steel rod manufactured in accordance with UNI EN 294.
Impeller with high efficiency airfoil blades in plastic material and hub in die cast aluminum alloy. Variable pitch angle in still position.
Balancing according to UNI ISO 21940-11.
Asynchronous electric motor three or single phase, protection IP55, class F, service S1, form B5, construction according to IEC/ EEC Explosion proof ATEX APPROVED FOR EXPLOSIVE ATMOSPHERE G or D GROUP II.

PLATE-M ATEX line is designed to grant a correct air extraction avoiding risks of explosion due to the presence of flammable gases.

For instance in the ventilation of battery rooms, petro-chemical platforms, laboratories etc.; wall or panel mounting

PLATE-M atex

exbutiken_atex-certifikat-PLATE

exbutiken_datablad-PLATE
