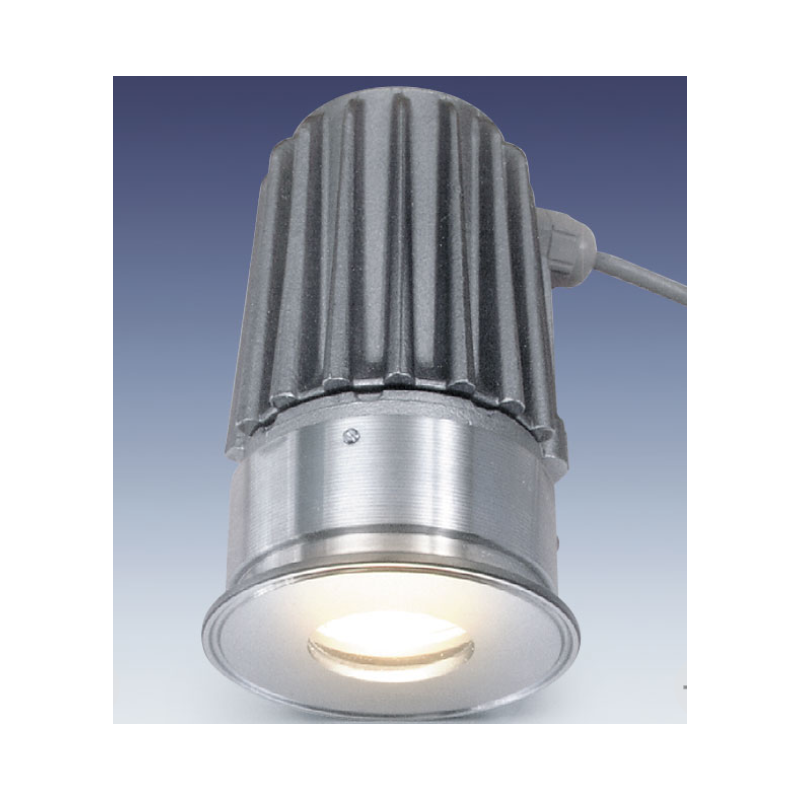

      Sight Glass Light USL05-EX

      Sight Glass Light USL05-EX

      • Sight glass fittings are suitable for ambient temperatures of up to 60°C, depending on which bulb is fitted.
      • Cable entry with pressure-tight resin-molded connection cable, Sinotherm 110 H05GG-F 3G, 1.5 mm², standard cable length: 2 m
      • Protective conductor terminal: Internal terminal already connected, additional external protective conductor terminal on the enclosure
      • Light effect: Bonded unit made of aluminum ring and glass; Viton seal
      • IP65 and IP67 according to DIN EN 60529
      • 230 v or 24 v
      Write your review

      For lighting the interior of tanks, hoppers, silos, agitators and other – normally closed – vessels and reactors as well as visual flow indicators in potentially explosive environments.

      Specific References
