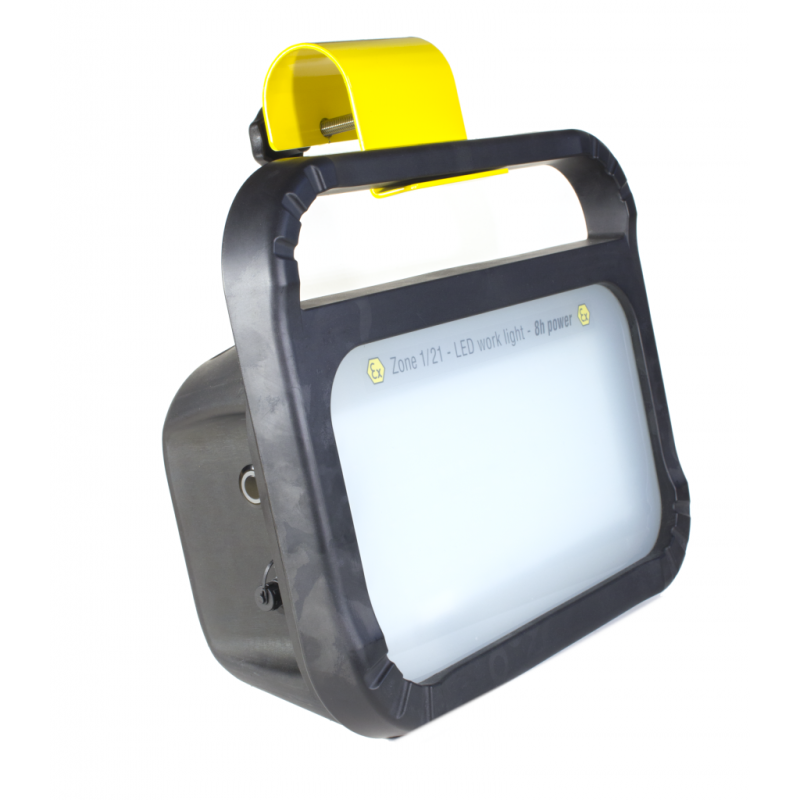

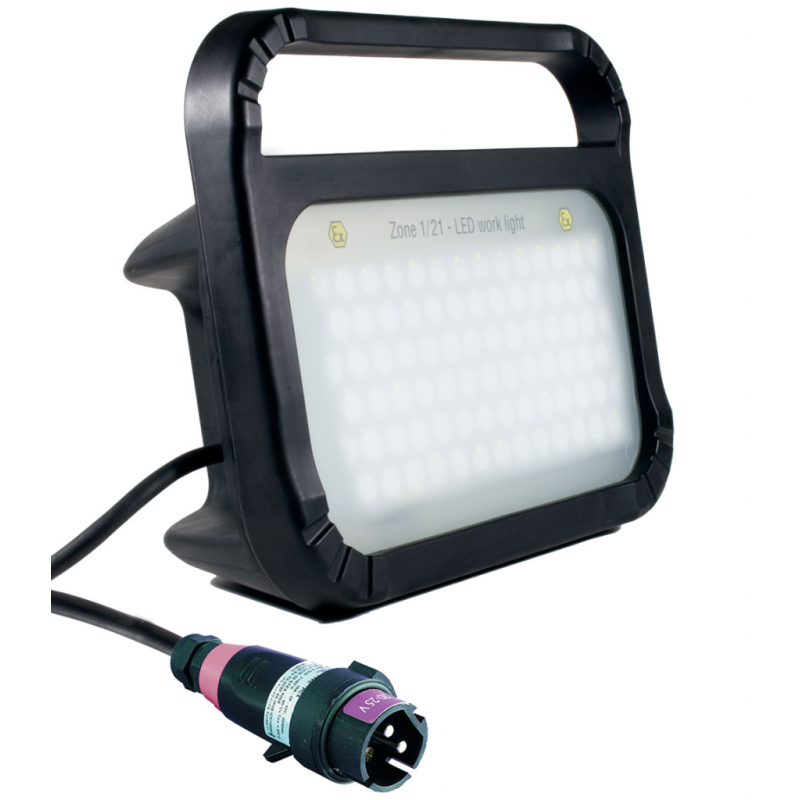

      Ultra3 Ex Zone 1/21 & 2/22
      Ultra3 Ex Zone 1/21 & 2/22
      Ultra3 Ex Zone 1/21 & 2/22

      Ultra3 Ex Zone 1/21 & 2/22

      • Volt - From 24V to 48V both AC and DC both 2p and 3p connectors
      • Watts - 35W
      • Light sources - 81 LEDs, 5000°K
      • Lumen - 4100
      • Composition - Throughout antistatique polypropylene, metal frame, stainless steel bolts.
      • Lens materials - Scratch and chemical resistant hardened glass with safety and diffusor foil
      • Weight - 5kg
      • Ingress protection level -  IP 65 according to EN 60529
      • Zones - 1/21, 2/22
      • Cable - 10m. or upon demand upto 30m. Upon demand: ATEX certified plug.

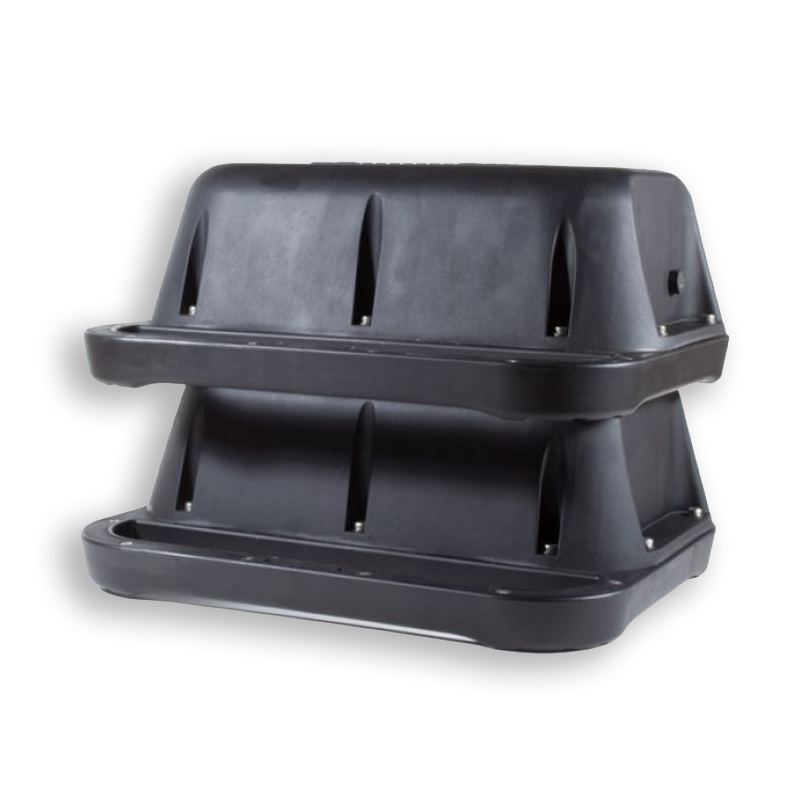

      • Stackable
      • Also available in 2- or 4-pack

      Illuminating workspaces or confined spaces in ATEX zones can be challenging, especially in larger areas where low voltage is required. Working with different contractors, systems, and cabling can create connectivity issues. The Ultra3 provides a universal solution—compatible with 24V–48V AC and DC and connectable with both two- and three-pin connectors.
