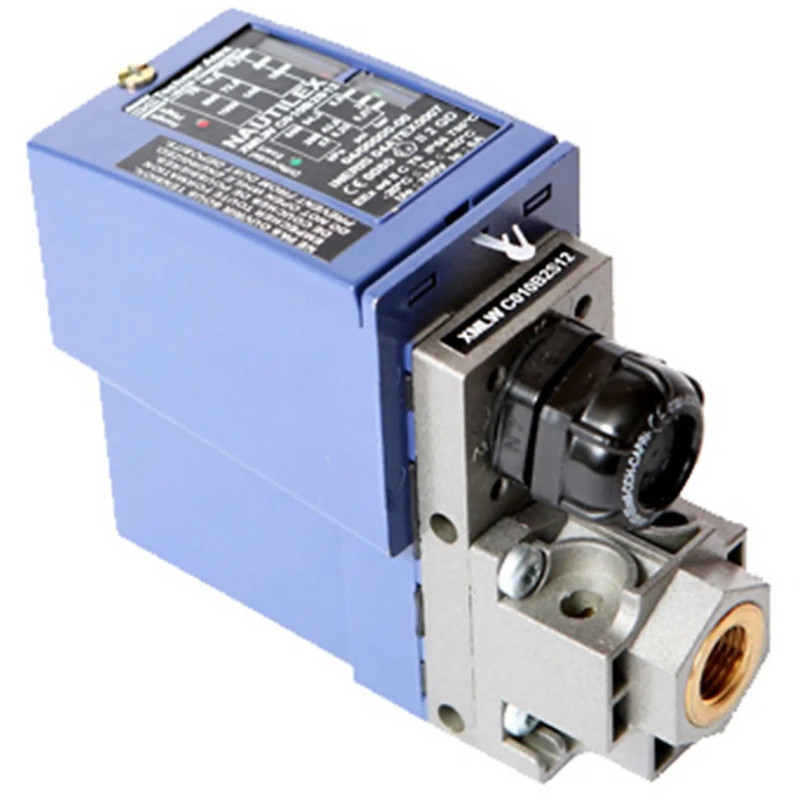

      Tryckgivare för zon 1/21 & 2/22 XMLW

      Tryckgivare för zon 1/21 & 2/22 XMLW

      • ATEX classification: II 2GD
      • Ex marking: Ex db eb IIC T6 Gb / Ex tb IIIC T85°C Db
      • Zones: Approved for Zone 1, 2, 21 and 22
      • Pressure range: 0.1–500 bar depending on model
      • Enclosure: Zamak, IP66
      • Temperature range: –20 °C to +60 °C
      • Contacts: Snap‑action NO + NC
      • Electrical rating: 6 A, 250 V insulation voltage
      • Connections: M20 cable entry, screw terminals; 1/4” gas female process port
      • Applications: Safe pressure monitoring in Ex‑classified industrial environments
      Write your review

      Covering a wide pressure range from 0.1 to 500 bar, the switches are certified for ATEX Zones 1, 2, 21 and 22. With flameproof protection, IP66 enclosure and reliable NO/NC snap‑action contacts, the XMLW series ensures accurate and safe pressure control in demanding industrial environments. The zamac housing and high protection rating make them suitable for process plants, energy applications, offshore installations and other Ex‑classified areas.
