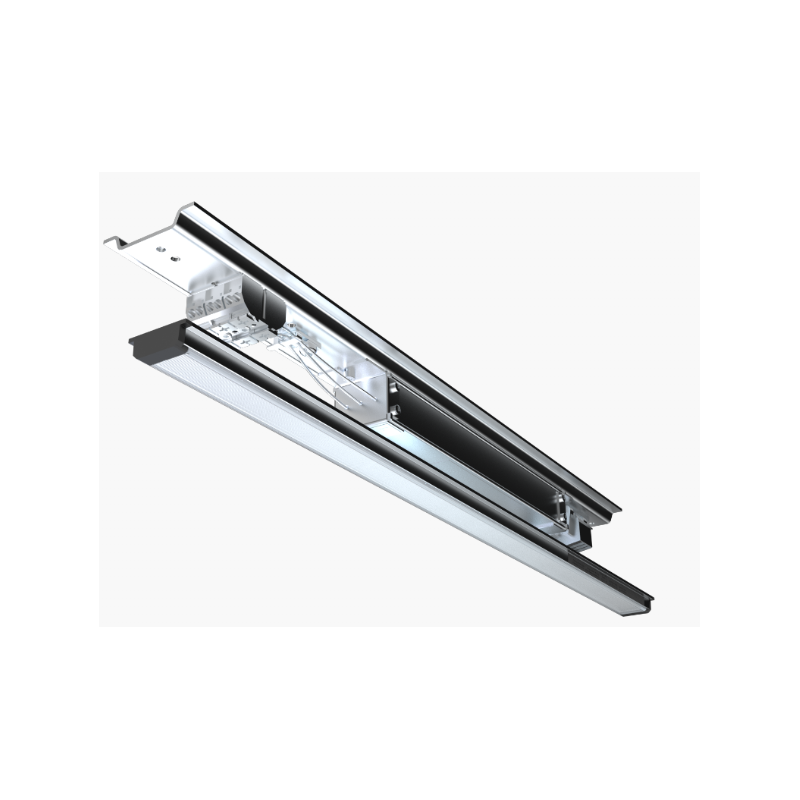

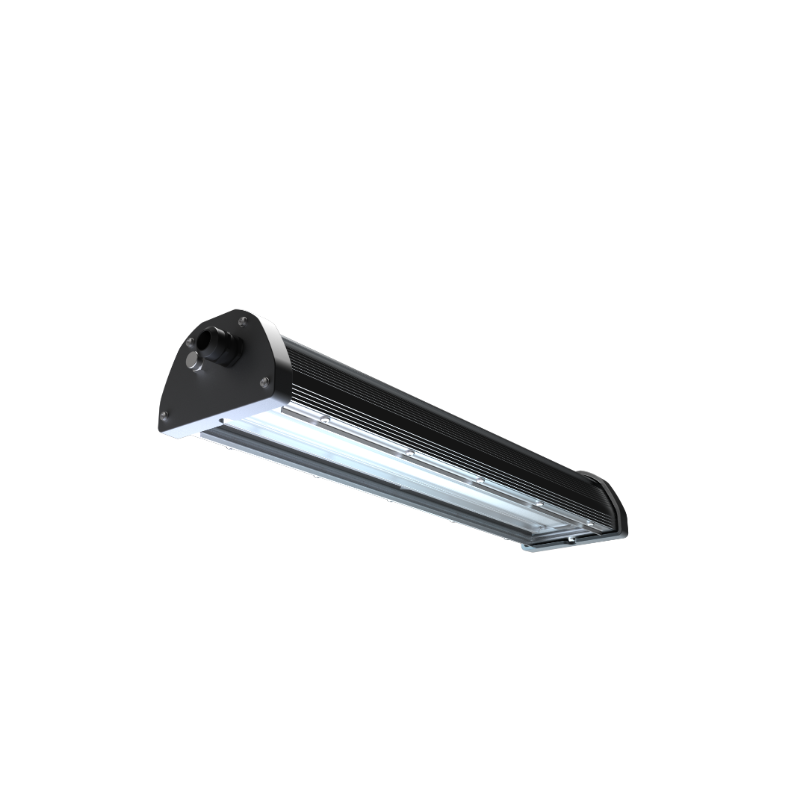

      Juko Alx
      Juko Alx

      Juko Alx

      -Frame extruded aluminium

      -Cover special ice cream

      - Optics PMMA

      - Fastener A4

      -Cable grommets polyamide (7J type)

      -Mounting Wall / ceiling / post

      -Installation adapters optional

      -Adjustability with adapters

      -Voltage AC

      -Nominal voltage 230

      -Type of driver constant current

      -Power 25W - 100W

      -Type of joint high effect

      -Color temperature 4000K

      -Cri >80

      -Light effect lm 4,000 - 16,000

      -Efficiency ~160

      -Lifespan L90 (Ta 25°C) 100,000 hours

      - Beam width 60° / 90° / 120°

      - Cable entry M25 (12-17 mm cable)

      -Through wires optional, also same end through cables

      -Connector / cross section WAGO / 1.5 … 4 mm2

      -IP rating IP66

      -Country of origin Finland

      -Ambient temperature -40°C ... Ta ... +55°C

      Write your review

      The luminaire is built on two component-certified modules, so multiple product variants and possible updates are very easy to implement. We have also designed a recovery function if failure situations occur due to voltage/current spikes or thermal spikes. This makes the maintenance of our fixture even easier.
