Device category: II 2GD Explosion protection: Ex db eb mb IIC T6 Gb Ex tb IIIC T80°C Db Ambient temperature: -20°C ÷ +40°C Protection class: IP66 Rated voltage: 110-240 VAC

Housing: powder-coated aluminum casting Diffuser: borosilicate glass, Packaging: silicone Device category: II 2G II 2D Explosion protection: Ex db eb IIC T6 Gb Ex tb IIIC T80°C Db Ambient temperature: -40°C ÷ +40°C Protection class: IP66 Rated voltage: 220-240...

Enclosure: sheet steel (Exd enclosure 12 mm thickness, Exe enclosure 3 mm thickness Gasket: EPDM molded gasket Device category: II 2GD I M2 Explosion protection: Ex de I/IIC T6 Gb Mb Ex tb IIIC Db Ambient temperature: -20ºC ≤ Ta ≤ +50ºC [ATEX] -40ºC ≤ Ta ≤ +50ºC [EAC] Protection class:...

Enclosure: sheet steel Ex eb enclosure 3 mm thickness Gasket: EPDM molded gasket Device category: I M2 II 2G II 2D Explosion protection: Ex eb I Mb Ex eb IIC T6-T4 Gb Ex tb IIIC T80°C Db Ambient temperature: -20°C ÷ +40°C Protection class: IP66 Rated voltage: ...

The Hytera PD715Ex handheld digital radio offers secure, reliable communications and has been designed to meet European ATEX directives, FM standards and IEC standards, ideal for harsh environments that require intrinsically safe devices.

Class I, II, III Division 1 ATEX/IECEx zone 1

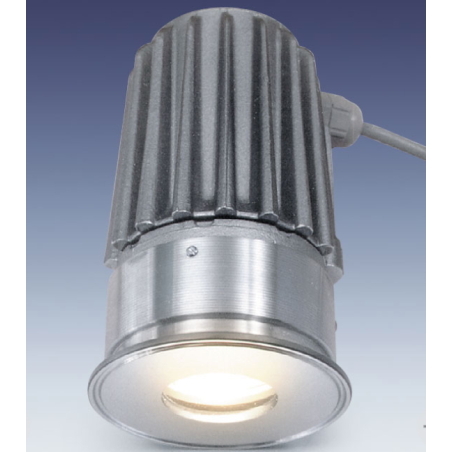

Sight glass fittings are suitable for ambient temperatures of up to 60°C, depending on which bulb is fitted. Cable entry with pressure-tight resin-molded connection cable, Sinotherm 110 H05GG-F 3G, 1.5 mm², standard cable length: 2 m Protective conductor terminal: Internal terminal already connected, additional external protective...

Luminaire body: stainless steel 1.4404, polished attached components: stainless steel 1.4301 cable entry: M20 x 1.5 Dustproof and water jet safe, IP 65 and 67 acc. according to EN 60 529 230 v and 24 v

Zone 1/21 Dimensions Size: 202 x 90.4 x 127 mm Weight: 377.1 g Types of protection IP68 dust/waterproof MIL-STD 810H Usable from -20 °C to +60 °C Scan type options MR (Midrange) Zebra SE4750 MR (~6 m) ER (Extended Range) Zebra SE4850 ER (~18m)

Zone 1/21 Operating system Ism OS Memory 1 GB and 8 GB RAM Dimensions Size: 53.95 x 45.4 x 17.6 mm Weight: 70 g Battery 500 mAh, 3.7 V Connectivity, Bluetooth® 5.1GPS, Glonass, Beidou Near-field communication Type of protection IP68 dust/waterproof Usable from -10 °C to +55 °C

Zone 1/21 Operating system Android™ 13 Processor Qualcomm® Snapdragon SDM660 Octa Core Memory 4 GB RAM, 64 GB internal memory and microSD to 512 GB Screen 8.0" (20.32 cm) can be used with gloves Battery 8160 mAh, 3.7 V Camera 13 MP AF rear and 5 MP FF front Connection Wi-Fi® 2.4 GHz + Wi-Fi®...

Zone 1/21 Operating system Android™ 13 Processor Qualcomm® Snapdragon SDM660 Octa Core Memory 4 GB RAM 64 GB internal memory and microSD up to 128 GB Dimensions Size: 155.3 x 76.7 x 25 mm Weight: 325.0 g Screen 4.5" (11.43 cm) Corning® Gorilla® Glass V3 and can be used with gloves Battery 3600...

Zone 2/22 Operating temperature: -65 to +70 °C Fire resistance: EI30, EI60, EI90, EI240 - EN-1366-3, EI120 Ingress protection: IP65, IP66, IP67, IP68, Nema 250 - type 3R, 4X, 12

Zone 1/21 Operating system ISM-OS Processor Qualcomm® QCM6490 Octa Core Memory 4 GB RAM and 64 GB internal memory Dimensions Size: 136.6 x 70 x 32 mm Weight: 307 g Screen 2.4" (6.096 cm) Corning® Gorilla® Glass V3 Battery 2400 mAh replaceable Camera 8 MP AF front Connection...

Operating temperature: -65 to +70 °C Watertightness: 6 Bar - Catastrophic pressure load Gas tightness: 4 Bar - Catastrophic pressure load Sea resistance to mark: A0, A60, H0, H60, H120 Ingress protection: IP65, IP66, IP67, IP68, Nema 250 - type 3R, 4X, 12.

Zone 2/22 Operating system Android™ 13 Processor Qualcomm® Snapdragon SDM660 Octa Core Memory 4 GB RAM, 64 GB internal memory and microSD up to 128 GB Dimensions Size: 155.3 x 76.7 x 25 mm Weight: 325.0 g Screen 4.5" (11.43 cm) Corning® Gorilla® Glass V3 and can be used with gloves Battery 3600...

Zone 2/22 Operating system Android™ 12 Processor Qualcomm® QCM6490 Octa Core Memory 8 GB RAM, 128 GB internal memory and microSD to 128 GB Dimensions Size: 180.0 x 84.9 x 20.6 mm Weight: 422.0 g Battery 4400 mAh, 3.7 V replaceable Camera 48 MP AF rear and 5 MP FF front Connection...

Zone 2/22 Operating system Android™ 14 Processor Qualcomm® Snapdragon SM6225 Octa Core Memory 6 GB RAM, 128 GB internal memory and microSD to 128 GB Dimensions Size: 161.0 x 75.0 x 15.8 mm Weight: 285 g Screen 5.5" (13.97 cm) matte Screen glass and can be used with gloves Battery 4500 mAh, 3.85...

Zon 2/22 Operativsystem Android™ 13 Processor Qualcomm® Snapdragon SDM660 Octa Core Minne 4 GB RAM, 64 GB internminne och microSD till 512 GB Mått Storlek: 237 x 156 x 22 mm Vikt: 890 g Skärm 8,0" (20,32 cm) och kan användas med handskar Batteri 8160 mAh, 3,7 V Kamera 13 MP AF bak och...

Zone 1/21 Housing: SMC polyester plastic reinforced with glass fiber, color RAL 7038 Diffuser: PC polycarbonate plastic Gasket: silicone 56 W, 7645 lm Central locking: can be opened/closed using a socket key SW8, hinged lamp cover The light fitting is normally supplied with socket key, two Ex e cable...

Zone 2/22 Dimensions Size: 202 x 90.4 x 127 mm Weight: 377.1 g Types of protection IP68 dust/waterproof and MIL-STD 810H Usable from -20 °C to +60 °C Scan type options MR (intermediate range) Zebra SE4750 MR (~6 m) and ER (extended range) Zebra SE4850 ER (~18 m)

Approved for Zone 1/21  Dimension:  280 x 200 x 40mm Voltage: 230V Power output: 100W at 5°C Temperature class: T4 Protection class: IP 65 Temperature range: - 55°C up to +85°C

- Ex-safe LED flashlight with 3 POWER LEDs / 6500K -Protective tube polycarbonate, impact resistant, 40 mm diameter -Diffuser foil integrated -Handle/end neoprene, black -Metal hook yes, plastic -Protection category: IP68 - 50m/5h (dust and waterproof) -Protection class: II / III -Cable standard version: 10m H07RN-F 2 x 1.0 mm² (extendable in...

- Ex-safe LED flashlight with 6 POWER LEDs / 6500K - Protective tube polycarbonate, impact resistant, 40 mm diameter - Diffuser foil integrated - Handle / end: neoprene, black - Metal hook yes, plastic - Protection category IP68 - 50m/5h (dust and waterproof) - Protection class: II / III - Cable standard version 10m H07RN-F 2 x 1.0 mm²...

- Explosion-proof LED flashlight with 18 POWER LEDs / 6500K - 360° lighting - Short switch-on time / long service life / low energy consumption - Low light weight of approx. 1.5 kg - Impact-resistant polycarbonate protective tube, 50 mm diameter - Glare-free light thanks to the integrated diffuser film - Durable neoprene handle with a pleasant...

  Gas container specifications - Material: 1.5 mm steel plate (roof/walls), 5 mm steel plate (floor). - Insulation: Walls 80 mm EI60, ceiling 50 mm EI30, floor 140 mm EI15. - Doors: Insulated steel doors with locks and door holders. - Ventilation: 2–4 connections (Ø160 mm) and openings (min. 140x140 mm), total ventilation area ≥1%. - Appliance boxes:...

-Apparatus category II 2GD -Explosion protection Ex db eb op is IIC T6 Gb -Ex tb op is IIIC T80°C Db -Ambient temperature -20°C ÷ +50°C -Enclosure class IP66 -Rated voltage 220-240V

-Category II 2GD -Explosion protection Ex db eb mb IIC T6Gb -Ex tb IIIC T80°C Db -Ambient temperature -20°C ÷ +40°C -Enclosure class IP66 -Rated voltage 220-240VAC

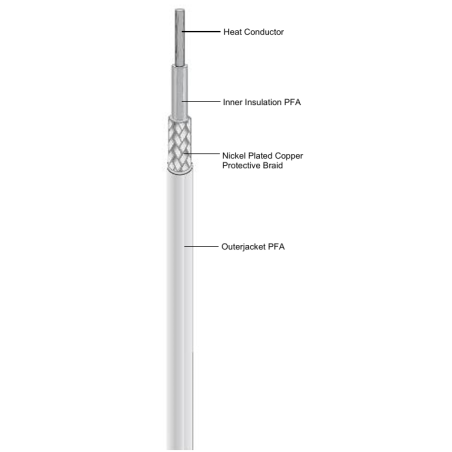

- Zone 1/21 -Nominal voltage: 450/750V AC -Tested voltage: 2.5kV -Temperature resistant: -60°C +260°C -Braiding resistance: <18.2 Ohm/km -My Inst. Temperature: -60°C -Min Bending radius: 25 mm for Ø >8 mm 15 mm for Ø ≤8 mm -Max Mechanical load: 4J tested ≥ 7.2 Ohm/km 7J tested < 4.4 Ohm/km

- Zone 1/21 -Synthetic Description DISCONNECT DISCONNECT -Material STAINLESS STEEL [AISI316L] - Degree of protection IPIP66 -Type EMERGENCY - Rated current 32A -3/4 Poles - Dimensions 141x200x126mm -Group and categories EXII 2GD -Ambient temperature Take min -35 °C -ambient temperature Max 60°C -Possible help...

- Zone 1/21 -Synthetic description DISCONNECT DISCONNECT -Material TECHNOLOGY PLASTIC - Degree of protection IP IP66 -Type EMERGENCY - Rated current 63A -3/4 Poles - Dimensions 250x255x120mm -Group and categories EX II 2GD -Ambient temperature Take min -35 °C -Ambient temperature Take max 60°C

- Zone 1/21 -Synthetic description SWITCH DISCONNECT -Material DRINKING CAST ALUMINUM - Degree of protection IP IP66 -Type EMERGENCY - Rated current 25A -3/4 Poles - Dimensions 202x232x142mm -Group and categories EX II 2GD -Ambient temperature Take min -35 °C -Ambient temperature Take max 60°C

-Zone 1/21 and 2/22 -Body cast aluminium, stainless steel -IP protection class IP66, IP68 -Power supply 12V, 0Hz; Power over Ethernet (PoE) -Packing boxes metal -Ambient temperature From -30 down, to +40 °C

- Zone 1/21 -Operating system Android™ 10 + WearHF™ hands-free interface -Processor Qualcomm® Snapdragon SD625 -Memory 2 GB RAM16 GB internal memorymicroSD to 64 GB -Dimensions Size: 305.0 x 230.0 x 32.0 mm -Weight: 425.1 g -Screen 0.33" (0.8382 cm) -Camera 16 MP AF front Connectivity options -Bluetooth® 4.1 BLE GPS, Glonass, Beidou,...

Zone 1/21 and Zone 2/22 Device category: II 2GD Explosion protection: Ex db eb op is IIC T4 Gb Ex tb op is IIIC T100°C Db Ambient temperature: -40°C ÷ +50°C Enclosure class: IP66 Rated voltage: (110 – 240 ± 10 %) V AC

Zone 2/22 Operating temperature: -65 to +70 °C Watertightness: 6 Bar Catastrophic pressure load Gas tightness: 4 Bar - Catastrophic pressure load Marine fire resistance: A0, A60, H0, H60, H120 Ingress protection: IP65, IP66, IP67, IP68, Nema 250 - type 3R, 4X, 12
